KYOCERA 9755711 SDTH Multi-Use Indexable Turning Insert Holder, ANSI Code: SCLCR163D, SCLC Tool Holder, CCGT325/CCMT325/CCGW325/CCMW325 Insert, Right Hand Cutting, 1 in W x 1 in H, 95 deg Lead Angle, Positive Rake, 6 in OAL | Indexable Turning Insert Holders

Home > Cutting Tools & Metalworking > Indexable Cutting Tools > Indexable Turning & Boring > Indexable Turning & Profiling > Indexable Turning Insert Holders >

Additional Information

Additional Information

Brand

KYOCERA

Long Description

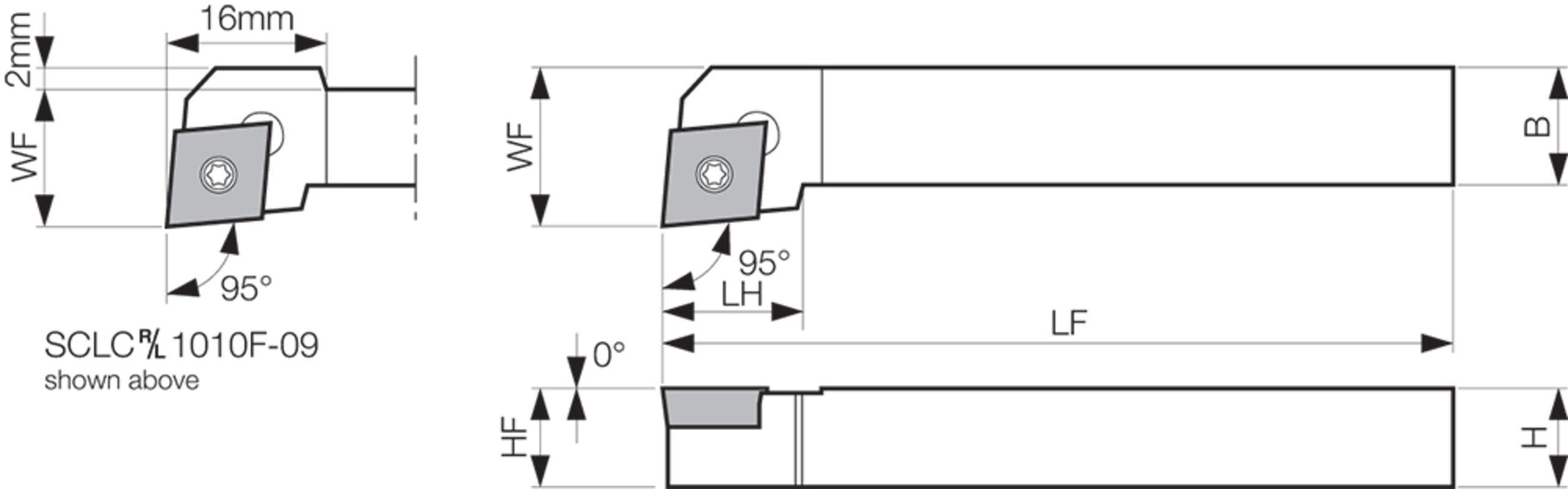

KYOCERA Indexable Turning Insert Holder, Multi-Use, Series: SDTH, SCLC Tool Holder, 6 in Overall Length, 1 in W x 1 in H Shank, Insert Compatibility: CCGT325/CCMT325/CCGW325/CCMW325, 0.1563 in Insert Seat, Right Hand Cutting Direction, 3/8 in Inscribed Circle, 1-1/4 in Back of Bar to Cutting Edge, 95 deg Lead Angle, 0.7874 in Head Length, ANSI Code: SCLCR163D, ISO Code: SCLCR163D, Positive Rake, Steel
