Brand
KYOCERA
Member SKU ID
395113063
AD SKU ID
KYOCERA_ISD_Q1_2021_02136
Category
Cutting Tools & Metalworking|Indexable Cutting Tools|Indexable Inserts|Drill Inserts
Category Child Node
Drill Inserts
ANSI Code
SCMT070305GMECA520D
Chipbreaker
GM-E
Corner Radius
0.0197 in
Drilling Application
Carbon/Alloy Steel, Tool Steel and Stainless Steel
Finish
CVD-TiCN/Al2O3/TiN Coated
For Use On
Carbon/Alloy Steel, Stainless Steel and Tool Steel
Hand of Insert
Right
Hole Diameter
0.1378 in
ISO Code
SCMT070305-GM-E
Included Angle
90 deg
Inscribed Circle
0.3012 in
Insert Size
#070305
Insert Style
SCMT
Manufacturer's Grade
CA520D
Material
Carbide
Material Grade
P, M
Series
DRV Magic Drill
Shape
Square
Thickness
0.126 in
Type
4-Cutting Edge Outboard Positive Rake
Long Description

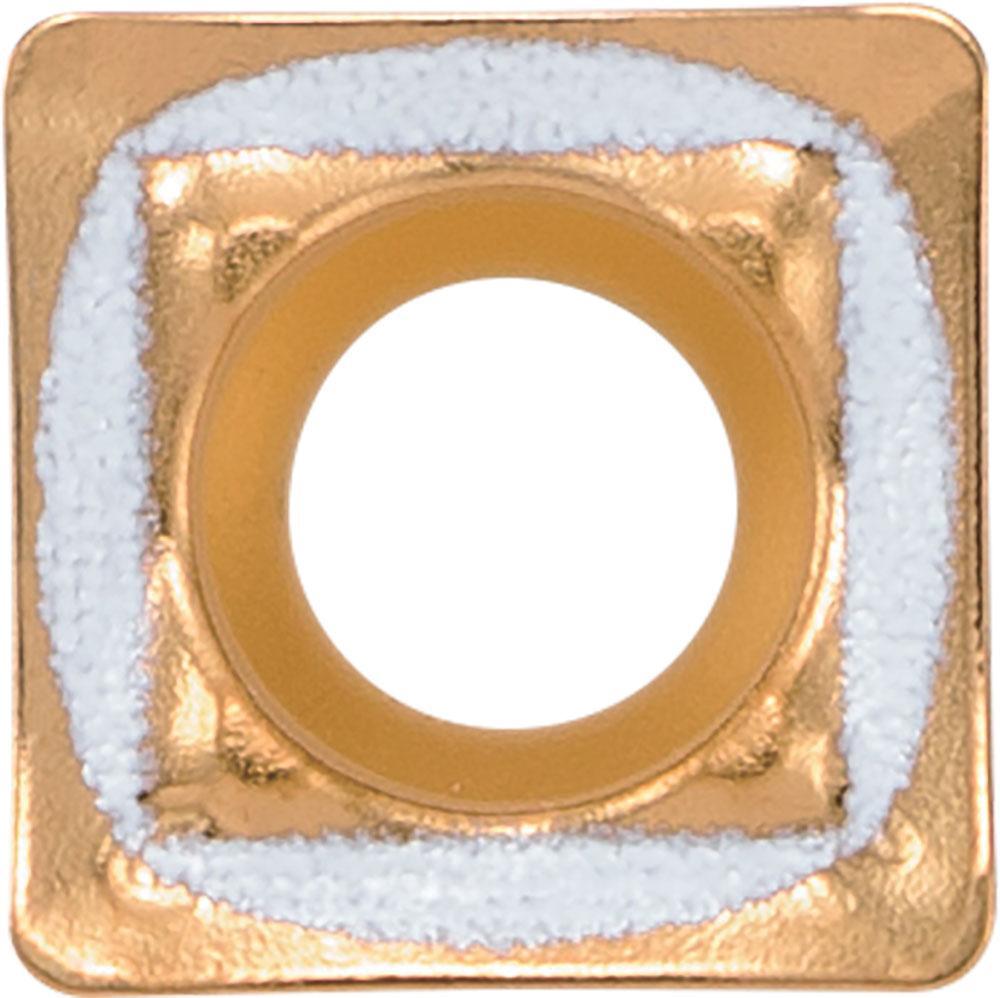

KYOCERA Indexable Drilling Insert, 4-Cutting Edge Outboard Positive Rake, Series: DRV Magic Drill, SCMT Insert, #070305 Insert, Square Shape, 0.3012 in Inscribed Circle, 0.126 in Thickness, GM-E Chipbreaker, 0.0197 in Corner Radius, 0.1378 in Diameter Hole, Manufacturers Grade: CA520D, 90 deg Included Angle, ANSI Code: SCMT070305GMECA520D, Right Hand of Insert, ISO Code: SCMT070305-GM-E, Carbon/Alloy Steel, Tool Steel and Stainless Steel, For Use On: Carbon/Alloy Steel, Stainless Steel and Tool Steel, Carbide, CVD-TiCN/Al2O3/TiN Coated, Material Grade: P, M
